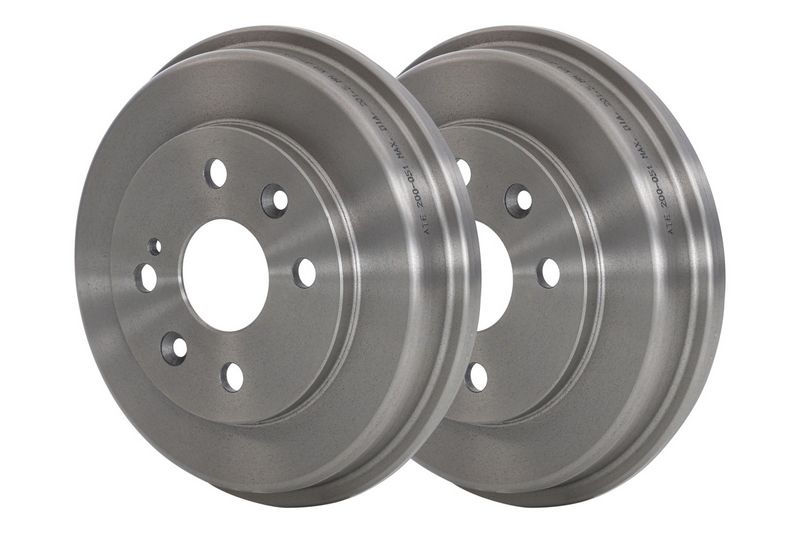

ATE 24.0220-0051.1 Brake Drum

Name: Brake Drum
Brand: ATE
Price: 43.39 EUR
Availability: InStock

EAN: 4006633468756

52.50 EUR

Inc. VAT 21%

Payments methods:

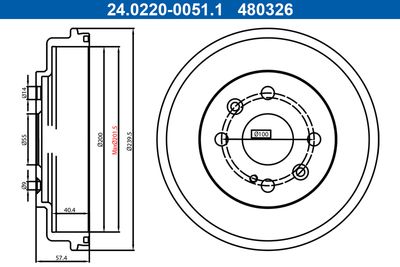

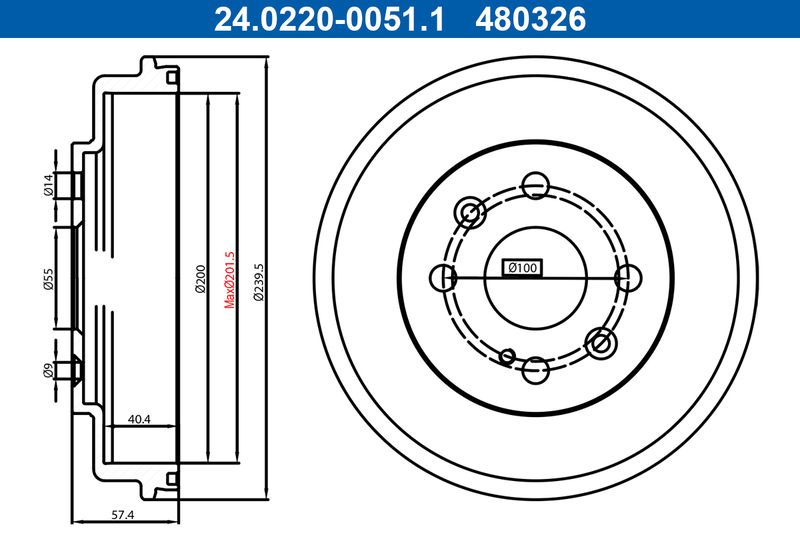

Technical Specifications

Inner brake drum diameter [mm]:	200
max. brake drum reboring dimension [mm]:	201.5
Inner brake drum height [mm]:	40.4
Number of Holes:	4
Bolt Hole Circle Ø [mm]:	100
Support plate diameter [mm]:	55
Bore Diameter [mm]:	14
Total brake drum height [mm]:	57.4
Outer brake drum diameter [mm]:	239.5
Test Mark:	E1 90R-02D0324/1876
MAPP code available:

OEN Number

MAZDA:	DF71-26-251
MAZDA:	DA7R-26-251
