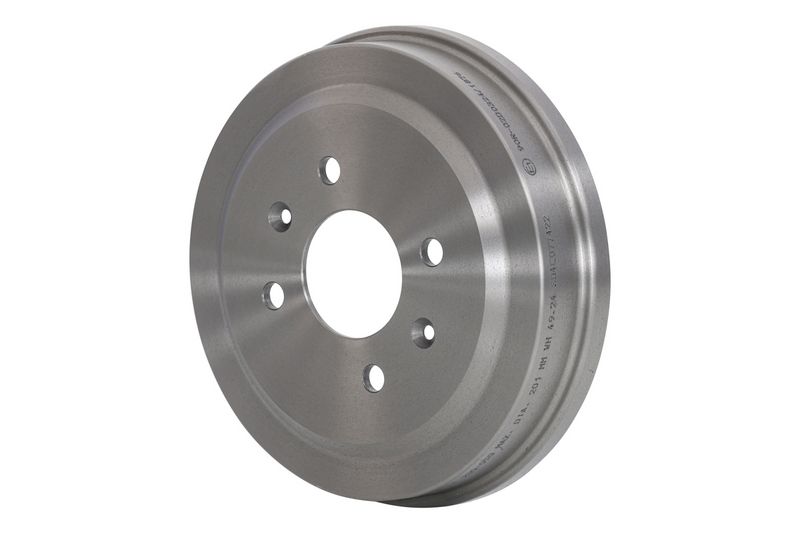

ATE 24.0220-0050.1 Brake Drum
EAN: 4006633504454
39.41 EUR
Inc. VAT 21%
Payments methods:

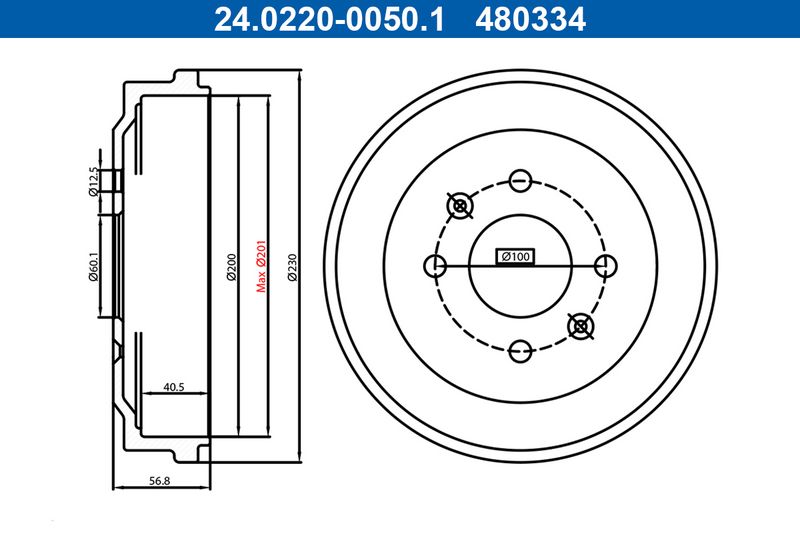

Technical Specifications
| Inner brake drum diameter [mm]: | 200 |
| max. brake drum reboring dimension [mm]: | 201 |
| Inner brake drum height [mm]: | 40.5 |
| Number of Holes: | 4 |
| Bolt Hole Circle Ø [mm]: | 100 |
| Bore Diameter [mm]: | 12.5 |
| Total brake drum height [mm]: | 56.8 |
| Outer brake drum diameter [mm]: | 230 |
| Support plate diameter [mm]: | 60.1 |
| Test Mark: | E1 90R-02D0324/1876 |
| MAPP code available: |
