ATE 24.0220-0044.1 Brake Drum
EAN: 4006633293815
41.36 EUR
Inc. VAT 21%
Payments methods:

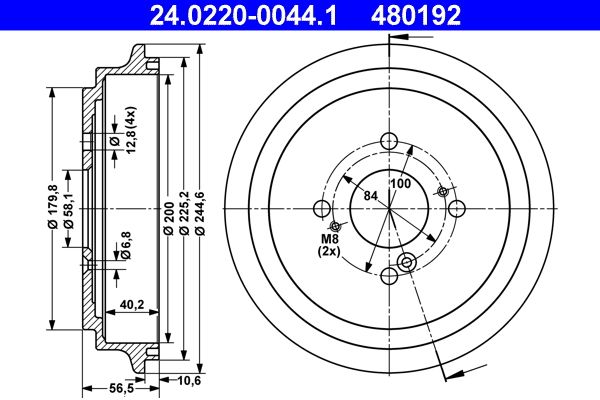

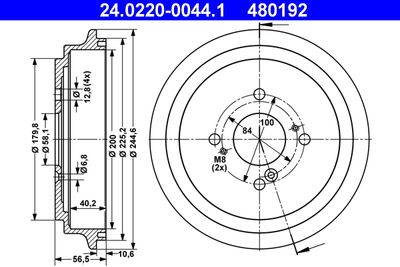

Technical Specifications
| Inner brake drum diameter [mm]: | 200 |
| Max.skimmed drum measure [mm]: | 202 |
| Inner Brake Drum Height [mm]: | 40.2 |
| Support plate diameter [mm]: | 58.1 |
| Number of Holes: | 4 |
| Bolt Hole Circle Ø [mm]: | 100 |
| Bore Ø [mm]: | 12.8 |
| Total Br. Drum Height [mm]: | 56.5 |
| Outer brake drum diameter [mm]: | 244.6 |
| MAPP code available: |
OEN Number
| SUZUKI: | 43511-60G00 |
| SUZUKI: | 43511-60G10 |
Similar Spare Parts
| A.B.S.: | 2691-S |
| BOSCH: | 0 986 477 141 |
| BREMBO: | 14.9388.10 |
| DELPHI: | BF449 |
| HELLA: | 8DT 355 300-571 |
| HELLA PAGID: | 8DT 355 300-571 |
| HERTH+BUSS JAKOPARTS: | J3408007 |
| KAVO PARTS: | BD-8855 |
| LPR: | 7D0525 |
| MAXGEAR: | 19-2626 |
| MEYLE: | 33-15 523 0001 |
| NIPPARTS: | J3408007 |
| NK: | 255204 |
| OPTIMAL: | BT-1490 |
| STELLOX: | 6025-9922-SX |
| TEXTAR: | 94026300 |
| TRW: | DB4269 |
| VALEO: | 237044 |
Compatibility
