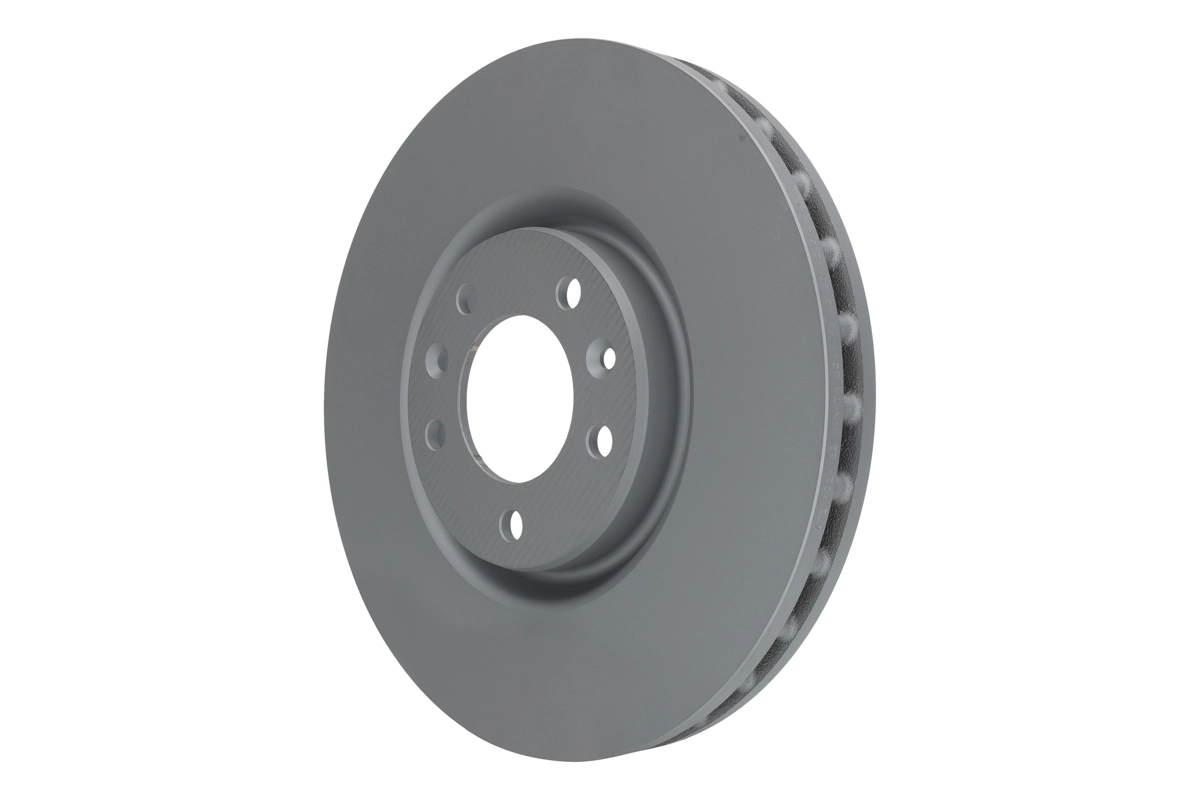

ATE 24.0132-0152.1 Brake Disc
EAN: 4006633209649
66.20 EUR
Inc. VAT 21%
Payments methods:

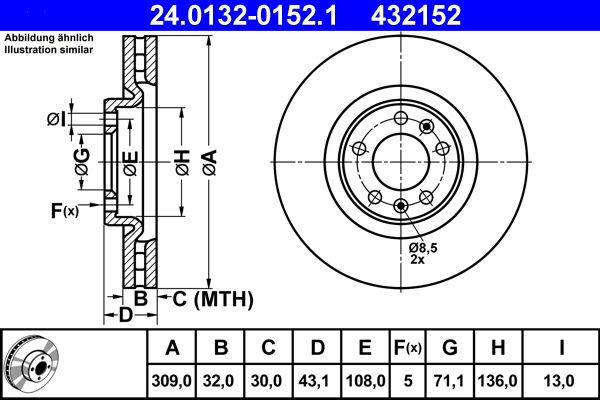

Technical Specifications
| Outer Diameter [mm]: | 309 |
| Brake Disc Thickness [mm]: | 32 |
| Minimum thickness [mm]: | 30 |
| Brake Disc Type: | Vented |
| Number of Holes: | 5 |
| Bolt Hole Circle Ø [mm]: | 108 |
| Height [mm]: | 43.1 |
| Centering Diameter [mm]: | 71.1 |
| Inner Diameter [mm]: | 136 |
| Bore Ø [mm]: | 13 |
| MAPP code available: | |
| Test Mark: | E1 90R-02C0115/1049 |
OEN Number
| PEUGEOT: | 4246 V5 |
Similar Spare Parts
| A.B.S.: | 17344 |
| BOSCH: | 0 986 479 027 |
| BREMBO: | 09.7680.10 |
| BREMBO: | 09.7680.11 |
| DELPHI: | BG3683 |
| FERODO: | DDF1114 |
| FTE: | 9071182 |
| FTE: | BS5321 |
| HELLA: | 8DD 355 108-421 |
| HELLA PAGID: | 8DD 355 108-421 |
| LPR: | P1261V |
| MAGNETI MARELLI: | 360406041100 |
| NK: | 203724 |
| STELLOX: | 6020-3724V-SX |
| TEXTAR: | 92111900 |
| TRW: | DF4237S |
| VALEO: | 186703 |
Compatibility
