ATE 24.0129-0100.1 Brake Disc
EAN: 4006633220842
98.99 EUR
Inc. VAT 21%
Payments methods:

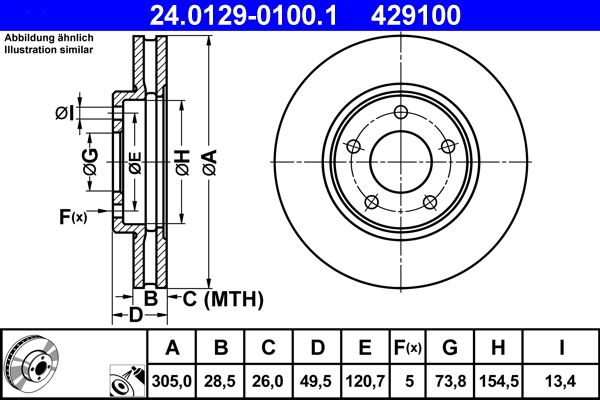

Technical Specifications
| Outer Diameter [mm]: | 305 |
| Brake Disc Thickness [mm]: | 28.5 |
| Minimum thickness [mm]: | 26 |
| Brake Disc Type: | Vented |
| Surface: | Coated |
| Number of Holes: | 5 |
| MAPP code available: | |
| Bolt Hole Circle Ø [mm]: | 120.7 |
| Height [mm]: | 49.5 |
| Centering Diameter [mm]: | 73.8 |
| Inner Diameter [mm]: | 154.5 |
| Bore Ø [mm]: | 13.4 |
| Test Mark: | E1 90R-02C0115/0881 |
OEN Number
| JAGUAR: | JLM 20150 |
Similar Spare Parts
| A.B.S.: | 17051 |
| ASHIKA: | 60-00-0339 |
| ASHIKA: | 60-00-0339C |
| BLUE PRINT: | ADJ134346 |
| BOSCH: | 0 986 478 662 |
| BREMBO: | 09.7731.10 |
| BREMBO: | 09.7731.11 |
| DELPHI: | BG3547 |
| FERODO: | DDF1069 |
| FERODO: | DDF1069C |
| JAPANPARTS: | DI-0339 |
| JAPANPARTS: | DI-0339C |
| JAPKO: | 600339 |
| JAPKO: | 600339C |
| JURID: | 563098JC |
| MAXGEAR: | 19-4895 |
| MEYLE: | 18-15 521 0005/PD |
| NK: | 201222 |
| OPTIMAL: | BS-8098 |
| OPTIMAL: | BS-8098C |
| STELLOX: | 6020-1293-SX |
| STELLOX: | 6020-1293K-SX |
| TEXTAR: | 92098900 |
| TRW: | DF4095 |
| ZIMMERMANN: | 290.2260.20 |
| ZIMMERMANN: | 290.2260.52 |
Compatibility
