ATE 24.0125-0119.1 Brake Disc
EAN: 4006633009102
64.67 EUR
Inc. VAT 21%
Payments methods:

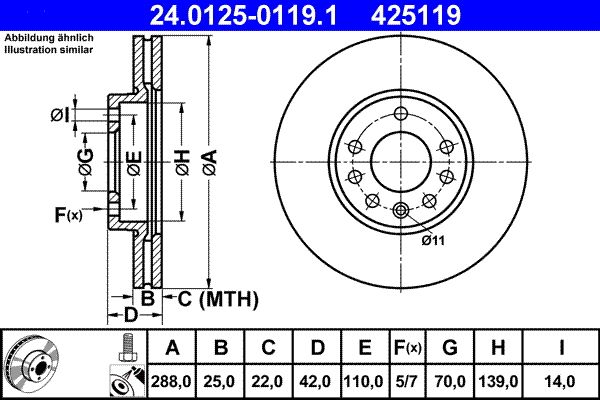

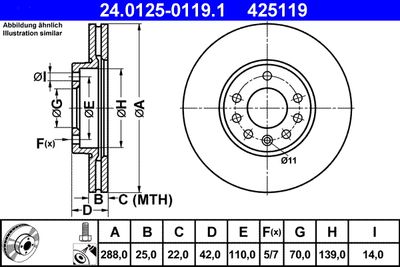

Technical Specifications
| Outer Diameter [mm]: | 288 |
| Brake Disc Thickness [mm]: | 25 |
| Minimum thickness [mm]: | 22 |
| Brake Disc Type: | Vented |
| Machining: | Alloyed/High-carbon |
| Surface: | Coated |
| Number of Holes: | 5 |
| Supplementary Article/Info 2: | with bolts/screws |
| MAPP code available: | |
| No. of holes 2: | 7 |
| Bolt Hole Circle Ø [mm]: | 110 |
| Height [mm]: | 42 |
| Centering Diameter [mm]: | 70 |
| Inner Diameter [mm]: | 139 |
| Bore Ø [mm]: | 14 |
| Test Mark: | E1 90R-02C0115/0009 |
OEN Number
Similar Spare Parts
| A.B.S.: | 16486 |
| ABE: | C3X008ABE |
| AIC: | 53657 |
| ASHIKA: | 60-00-0414 |
| ASHIKA: | 60-00-0415C |
| AUTOMEGA: | 120083110 |
| BLUE PRINT: | ADW194329 |
| BOSCH: | 0 986 478 588 |
| BOSCH: | 0 986 478 717 |
| BREMBO: | 09.6997.10 |
| BREMBO: | 09.6997.11 |
| BREMBO: | 09.6997.1X |
| BREMBO: | 09.6997.21 |
| BREMBO: | 09.6997.24 |
| CHAMPION: | 561960CH |
| CIFAM: | 800-605C |
| DELPHI: | BG3142 |
| DELPHI: | BG3142C |
| DENCKERMANN: | B130075 |
| FEBI BILSTEIN: | 10748 |
| FERODO: | DDF810 |
| FERODO: | DDF810C |
| FTE: | 9071079 |
| FTE: | 9081020 |
| FTE: | 9082543 |
| HELLA: | 8DD 355 104-681 |
| JAPANPARTS: | DI-0414 |
| JAPANPARTS: | DI-0415C |
| JAPKO: | 600414 |
| JAPKO: | 600415C |
| JP GROUP: | 1263104900 |
| JURID: | 561960JC |
| KAMOKA: | 1031620 |
| KRAFT AUTOMOTIVE: | 6041541 |
| LPR: | O1321VR |
| MAGNETI MARELLI: | 353613426240 |
| MAGNETI MARELLI: | 360406038200 |
| MAGNETI MARELLI: | 360406053800 |
| MAGNETI MARELLI: | 360406053801 |
| MASTER-SPORT GERMANY: | 24012501191-PCS-MS |
| MASTER-SPORT GERMANY: | 24012501191-PCS-MSP |
| MASTER-SPORT GERMANY: | 24012501191-SET-MS |
| MASTER-SPORT GERMANY: | 24012501191-SET-MSP |
| MAXGEAR: | 19-0737 |
| MAXGEAR: | 19-0737MAX |
| MAXGEAR: | 19-0737SPORT |
| METELLI: | 23-0605C |
| METZGER AUTOTEILE: | 6110164 |
| MEYLE: | 615 521 6012 |
| NK: | 203625 |
| NK: | 313625 |
| OPTIMAL: | BS-4940 |
| OPTIMAL: | BS-4940C |
| QUARO: | QD5919 |
| REMSA: | 6494.10 |
| REMSA: | 6729.10 |
| SASIC: | 9004811J |
| SKF: | VKBD 80549 V1 |
| STELLOX: | 6020-3625V-SX |
| SWAG: | 40 91 0748 |
| TEXTAR: | 92075603 |
| TOMEX Brakes: | TX 70-55 |
| TOPRAN: | 205 521 |
| TRISCAN: | 8120 24123C |
| TRW: | DF2778 |
| TRW: | DF2778S |
| VAICO: | V40-80017 |
| VALEO: | 186496 |
| VALEO: | 197226 |
| VALEO: | 672850 |
| ZIMMERMANN: | 430.1473.20 |
| ZIMMERMANN: | 430.1473.52 |
