ATE 24.0124-0127.1 Brake Disc
EAN: 4006633291033
62.86 EUR
Inc. VAT 21%
Ready for dispatch:
Tomorrow, 07 May, 2025
| Fedex standart: | Price from 5.00 € |
| Fedex express: | Price from 5.00 € |
| DPD: | Price from 5.00 € |
Payments methods:

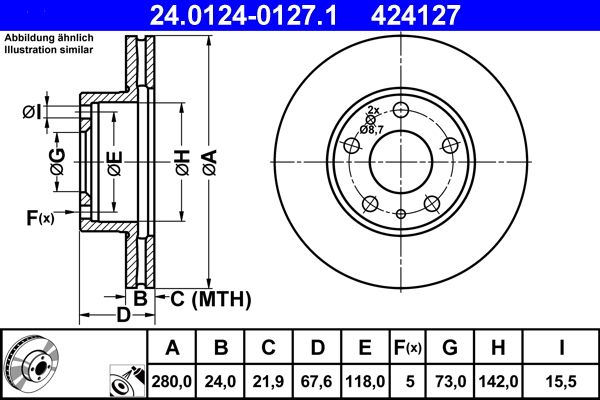

Technical Specifications
| Outer Diameter [mm]: | 280 |
| Brake Disc Thickness [mm]: | 24 |
| Minimum thickness [mm]: | 21.9 |
| Brake Disc Type: | Vented |
| Surface: | Coated |
| Number of Holes: | 5 |
| Bolt Hole Circle Ø [mm]: | 118 |
| MAPP code available: | |
| Height [mm]: | 67.6 |
| Centering Diameter [mm]: | 73 |
| Inner Diameter [mm]: | 142 |
| Bore Ø [mm]: | 15.5 |
| Test Mark: | E1 90R-02C0115/0428 |
OEN Number
| CITROËN: | 4246 Y1 |
| CITROËN: | 4246 L4 |
| CITROËN: | 4249 99 |
| CITROËN: | 4249 27 |
| CITROËN: | 4249 K3 |
| CITROËN: | 16 078 720 80 |
| CITROËN: | 4249 H8 |
| FIAT: | 46806233 |
| FIAT: | 1300501080 |
| FIAT: | 51728377 |
| FIAT: | 51740244 |
| FIAT: | 51848619 |
| OPEL: | 16 078 720 80 |
| OPEL: | 4249 K3 |
| PEUGEOT: | 4246 L2 |
| PEUGEOT: | 4249 99 |
| PEUGEOT: | 4246 X9 |
| PEUGEOT: | 4246 Y1 |
| PEUGEOT: | 4249 26 |
| PEUGEOT: | 4249 K3 |
| PEUGEOT: | 16 078 720 80 |
| PEUGEOT: | 4249 H8 |
| VAUXHALL: | 16 078 720 80 |
| VAUXHALL: | 4249 K3 |
Similar Spare Parts
| A.B.S.: | 16291 |
| ABAKUS: | 231-03-017 |
| ABAKUS: | 231-03-017-2 |
| ABE: | C3P017ABE |
| ALTE AUTOMOTIVE: | 128023FCAL |
| ASHIKA: | 60-00-0619C |
| ATE: | 24.0124-0208.1 |
| BLUE PRINT: | ADP154327 |
| BOSCH: | 0 986 478 434 |
| BOSCH: | 0 986 479 B34 |
| BOSCH: | 0 986 479 B96 |
| BOSCH: | 0 986 479 S70 |
| BREMBO: | 09.5904.14 |
| BREMBO: | 09.8931.10 |
| BREMBO: | 09.8931.20 |
| BREMBO: | 09.8931.21 |
| BREMBO: | 09.9614.14 |
| CHAMPION: | 561984CH |
| CHAMPION: | 562126CH |
| CHAMPION: | 563018CH |
| CHAMPION: | 563026CH |
| CIFAM: | 800-340 |
| DELPHI: | BG2846 |
| DELPHI: | BG3841 |
| DENCKERMANN: | B130070 |
| DT Spare Parts: | 12.41000 |
| FEBI BILSTEIN: | 10564 |
| FEBI BILSTEIN: | 43933 |
| FERODO: | DDF1132 |
| FERODO: | DDF1132C |
| FERODO: | DDF1144 |
| FERODO: | DDF1144C |
| FERODO: | DDF1170 |
| FERODO: | DDF1170C |
| FERODO: | DDF1809 |
| FERODO: | DDF1809C |
| FERODO: | DDF767 |
| FERODO: | DDF767C |
| FTE: | 9072113 |
| FTE: | 9082015 |
| FTE: | BS4361 |
| FTE: | BS4361B |
| HELLA: | 8DD 355 122-701 |
| HELLA: | 8DD 355 127-811 |
| HELLA PAGID: | 8DD 355 122-701 |
| HERTH+BUSS JAKOPARTS: | J3302238 |
| JAPANPARTS: | DI-0619C |
| JAPANPARTS: | DI0619JM |
| JAPKO: | 600619C |
| JP GROUP: | 4163100900 |
| JURID: | 561984JC |
| JURID: | 563018J |
| JURID: | 563026J |
| KAMOKA: | 1031534 |
| KRAFT AUTOMOTIVE: | 6045810 |
| KRAFT AUTOMOTIVE: | 6045913 |
| LPR: | F2171VR |
| MAGNETI MARELLI: | 353611525240 |
| MAGNETI MARELLI: | 353611535240 |
| MAGNETI MARELLI: | 360406022600 |
| MAGNETI MARELLI: | 360406023800 |
| MAGNETI MARELLI: | 361302040168 |
| MAGNETI MARELLI: | 361302040230 |
| MASTER-SPORT GERMANY: | 24012401271-PCS-MS |
| MASTER-SPORT GERMANY: | 24012401271-PCS-MSP |
| MASTER-SPORT GERMANY: | 24012401271-SET-MS |
| MASTER-SPORT GERMANY: | 24012401271-SET-MSP |
| MAXGEAR: | 19-0798 |
| MAXGEAR: | 19-0798MAX |
| MAXGEAR: | 19-0798SPORT |
| METELLI: | 23-0340 |
| METZGER AUTOTEILE: | 6110104 |
| MEYLE: | 215 521 0004 |
| MEYLE: | 283 521 0004/PD |
| NK: | 201941 |
| NK: | 201960 |
| NK: | 209945 |
| NK: | 311941 |
| NK: | 311960 |
| NK: | 319945 |
| OPTIMAL: | BS-8380HC |
| QUARO: | QD3403 |
| QUARO: | QD6469 |
| REMSA: | 61351.10 |
| REMSA: | 6476.10 |
| SASIC: | 2464L24J |
| SKF: | VKBD 80036 V2 |
| STELLOX: | 6020-9945V-SX |
| STELLOX: | 6020-9945VK-SX |
| SWAG: | 62 94 3933 |
| SWAG: | 70 91 0564 |
| TEXTAR: | 92275100 |
| TEXTAR: | 92275103 |
| TEXTAR: | 92275105 |
| TOMEX Brakes: | TX 70-19 |
| TOPRAN: | 722 454 |
| TRISCAN: | 8120 10140C |
| TRISCAN: | 8120 10154C |
| TRW: | DF2721 |
| VAICO: | V42-80017 |
| VALEO: | 186418 |
| VALEO: | 197043 |
| VALEO: | 672554 |
| VALEO: | 672757 |
| ZIMMERMANN: | 180.3013.20 |
| ZIMMERMANN: | 180.3013.52 |
