ATE 24.0122-0307.1 Brake Disc
EAN: 4006633471732
78.73 EUR
Inc. VAT 21%
Payments methods:

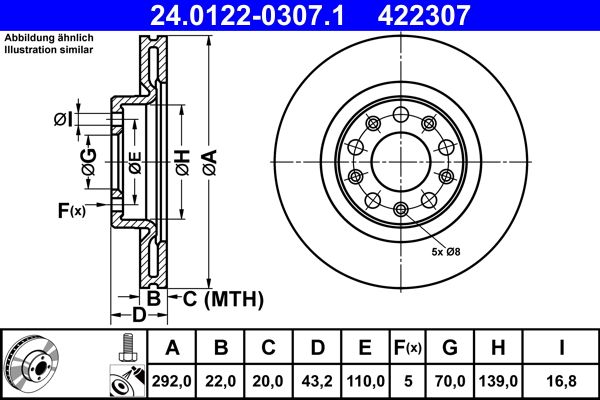

Technical Specifications
| Outer Diameter [mm]: | 292 |
| Brake Disc Thickness [mm]: | 22 |
| Minimum thickness [mm]: | 20 |
| Brake Disc Type: | Vented |
| Surface: | Coated |
| Number of Holes: | 5 |
| Bolt Hole Circle Ø [mm]: | 110 |
| Height [mm]: | 43.2 |
| Centering Diameter [mm]: | 70 |
| Inner Diameter [mm]: | 139 |
| Bore Ø [mm]: | 16.8 |
| Supplementary Article/Info 2: | with bolts/screws |
| MAPP code available: | |
| Test Mark: | E1 90R-02C0115/1108 |
Similar Spare Parts
| A.B.S.: | 17630 |
| BLUE PRINT: | ADL144339 |
| BOSCH: | 0 986 479 D99 |
| BREMBO: | 09.C496.11 |
| BREMBO: | 09.C496.1S |
| BREMBO: | 09.C496.1X |
| CIFAM: | 800-863C |
| DELPHI: | BG4999C |
| FEBI BILSTEIN: | 43962 |
| FERODO: | DDF3085C |
| HELLA: | 8DD 355 116-691 |
| JURID: | 563730JC |
| MAGNETI MARELLI: | 360406127701 |
| MAGNETI MARELLI: | 361302040853 |
| METELLI: | 23-0863C |
| OPTIMAL: | BS-9640C |
| SWAG: | 74 94 3962 |
| TEXTAR: | 92221103 |
| TRISCAN: | 8120 15149C |
| ZIMMERMANN: | 110.2225.20 |
| ZIMMERMANN: | 110.2225.52 |
Compatibility
