In stock
ATE 24.0122-0229.1 Brake Disc
EAN: 4006633252690
72.07 EUR
Inc. VAT 21%
Payments methods:

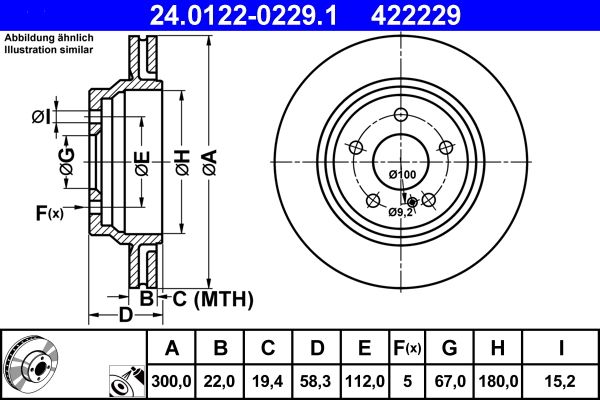

Technical Specifications
| Outer Diameter [mm]: | 300 |
| Brake Disc Thickness [mm]: | 22 |
| Minimum thickness [mm]: | 19.4 |
| Brake Disc Type: | Vented |
| Machining: | Alloyed/High-carbon |
| Surface: | Coated |
| Number of Holes: | 5 |
| MAPP code available: | |
| Bolt Hole Circle Ø [mm]: | 112 |
| Height [mm]: | 58.3 |
| Centering Diameter [mm]: | 67 |
| Inner Diameter [mm]: | 180 |
| Bore Ø [mm]: | 15.2 |
| Test Mark: | E1 90R-02C0296/1061 |
OEN Number
| MERCEDES-BENZ: | 230 423 04 12 |
| MERCEDES-BENZ: | 221 423 12 12 |
| MERCEDES-BENZ: | A 230 423 04 12 |
| MERCEDES-BENZ: | A 221 423 12 12 |
Similar Spare Parts
| A.B.S.: | 17844 |
| ABE: | C4M040ABE |
| BLUE PRINT: | ADU174384 |
| BOSCH: | 0 986 479 655 |
| BREMBO: | 09.C941.11 |
| DELPHI: | BG4914C |
| FEBI BILSTEIN: | 26108 |
| FERODO: | DDF3036C |
| HELLA: | 8DD 355 115-391 |
| JURID: | 563679JC |
| MEYLE: | 015 523 0048/PD |
| NK: | 3133157 |
| OPTIMAL: | BS-7866C |
| QUARO: | QD2270 |
| REMSA: | 61296.10 |
| STELLOX: | 6020-1731-SX |
| STELLOX: | 6020-1731K-SX |
| SWAG: | 10 92 6108 |
| TEXTAR: | 92176303 |
| TRUCKTEC AUTOMOTIVE: | 02.35.484 |
| VAICO: | V30-80092 |
| VALEO: | 197746 |
| ZIMMERMANN: | 400.5532.20 |
| ZIMMERMANN: | 400.5532.52 |
Compatibility
