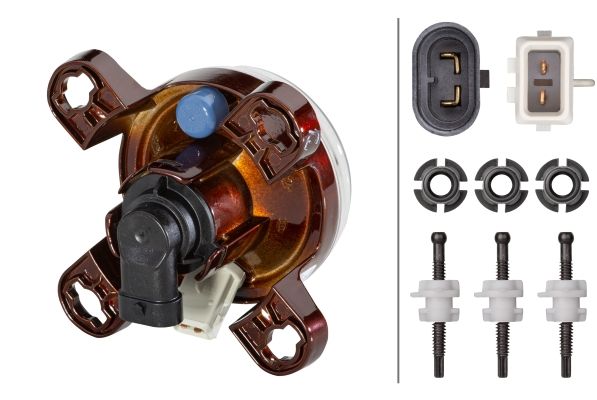

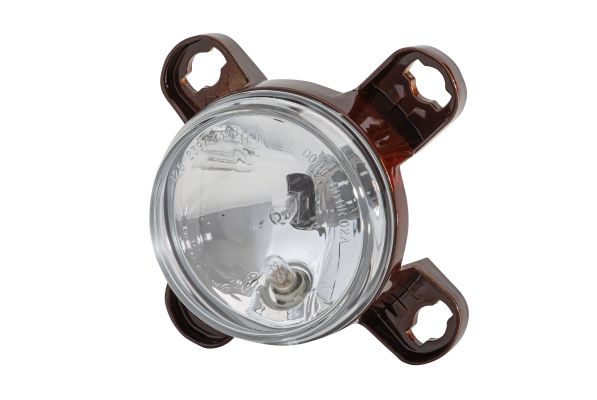

HELLA 1K0 247 043-097 Headlight
EAN: 4082300285642
53.60 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Mounting Type: | Fitting |
| Fastening Type: | 3-point attachment |
| Lamp Type: | H1 |
| Lamp Type: | T4W |
| Light Design: | DE |
| Light Design: | FF |
| Voltage [V]: | 24 |
| Fitting Position: | Right |
| Fitting Position: | Left |
| Width [mm]: | 113 |
| Height [mm]: | 113 |
| Depth [mm]: | 97 |
| Light Function: | with high beam |
| Light Function: | with position light |
| Number of light functions: | 2 |
| Protection Type (IP Code): | IPX9K |
| Protection Type (IP Code): | IPX4K |
| Dust Cover: | with dust cover |
| Registration Type: | ECE approved |
| Reference number: | 12.5 |
| Shape: | round |
| Housing Colour: | black |
| Illuminated Area [mm]: | 90 |
| Additionally required articles (article numbers): | 8JD 156 151-807 |
| Diffusing Lens Material: | Glass |
| Lens Colour: | transparent |
| Diffusing Lens Type: | Hardened diffusing lens |
| Supplementary Article/Info 2: | with bulbs |
| Left-hand/Right-hand Traffic: | for right-hand traffic |
| Assy./disassy. by qualified personnel required!: |
OEN Number
| IVECO: | 5801 342354 |
| MERCEDES-BENZ: | 003 820 545 601 |
| MERCEDES-BENZ: | A 003 820 545 601 |
| VAN HOOL: | 11228645 |
| TATA: | 48.331.39.020 |
| EVOBUS: | 003 820 54 56 01 |
| EVOBUS: | A0038205456 01 |
| VDL: | 30036229 |
Similar Spare Parts
| HELLA: | 1K0 247 043-007 |
| HELLA: | 1K0 247 043-021 |
| HELLA: | 1K0 247 043-027 |
